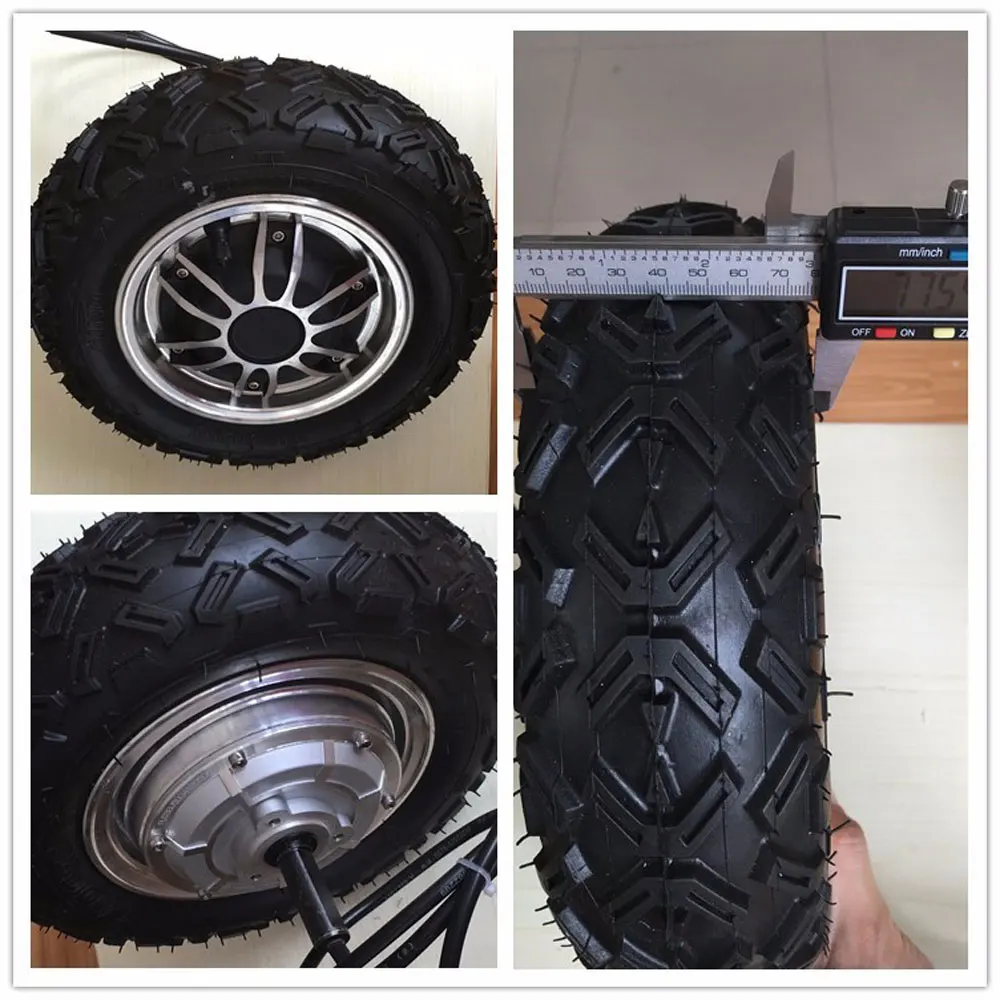

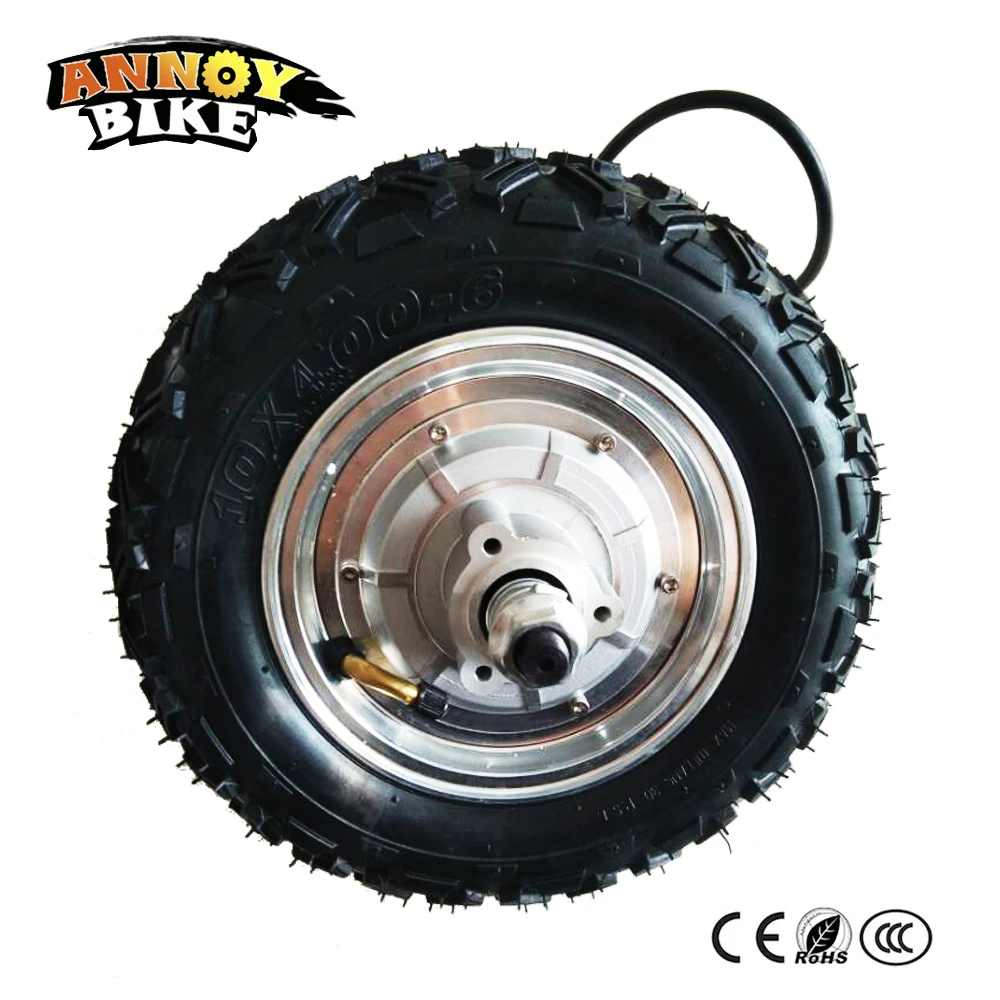

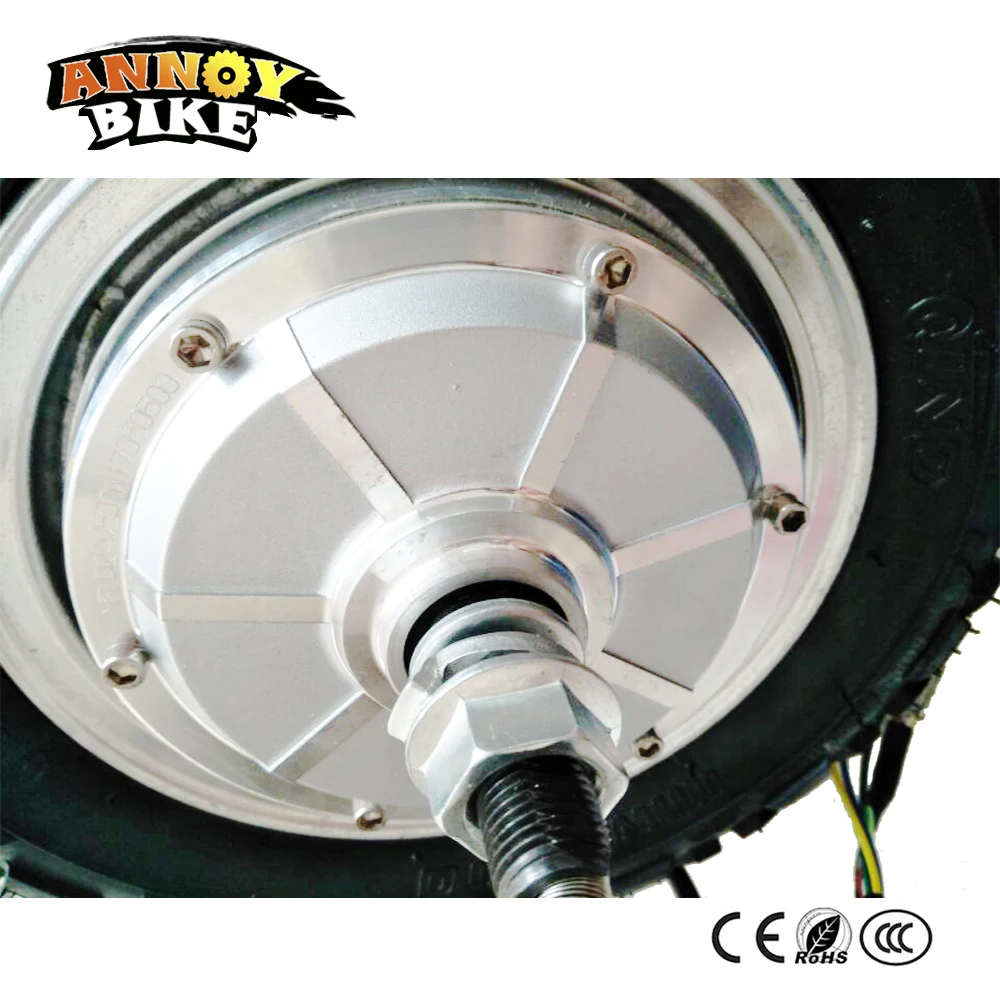

Note： All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly. Specification: Motor: 10inch Brushless Gearless motor Hallsensor:YES (5 hall sensor wires) Braketype:V/Discbrake Motor wheel size( include the tire): 10inch Tire Model:10*4.00-6Vacuum tire Tire Width: 78mm Max Torque: 15N.M Rated power : 350W-500W Rated voltage：24V Speed : 12---50km/h Rotating speed : 250---1000 RPM Load Weight: 100-120 kg Tire Diameter : 275 mm Open file : 130mm Weight : about 6kg PS: If you need the Flat ( Road) tire wheel, pleaes leave message when you make the order. If you need the other power or voltage 10 inch motor kit, please see this link: http://annoybike.aliexpress.com/store/group/10-inch-Wheel-Size/1656295_503856111.html?spm=2114.12010608.0.0.7d502fc0JDquWr The gear-lessmotor:Has ahigh speed and RPM. It is suitable for riding on the ground, but can't climb a steep slope. The gear motor:Has a low speed and RPM, but it has ahigh torque. It is suitable for climbing slope and can load a big weight. Material: 1. wheel: standard international A356 aluminum heat treatment. 2. magnetic steel: standard 38H 3. iron core: DW350 lamination 4. Hall: Honeywell can resist high temperature: 150 Note: Single shaft motor shaft isnon-threaded Double shaft motor shaft is threaded If you need thread model on the single shaft motor, please leave message when you make order. Or we will send the non-threaded single shaft model to you Double shaft Single shaft
